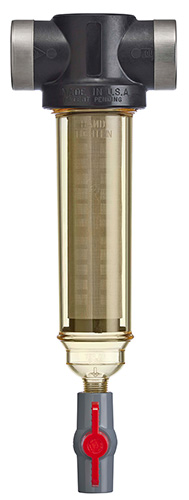

Hot Water Filters

Rusco Hot Water Filters provide the same efficient and powerful sediment filtration as our Spin-Down filters, while adding resistance to high temperatures. Additionally, the Hot Water Filter’s thermoplastic construction allows for increased chemical resistance. Installing a Rusco HotWater Spin-Down orSediment Trapper filter onthe return line, before theheat exchanger, will helpto prevent the build-up ofsludge by ensuring smallparticles are filtered outand flushed away

Applications

Hydronic Heating
Systems
Outdoor
Wood Boilers
Water
Heaters
Instantaneous
Water Heaters

Multiple Filter Types

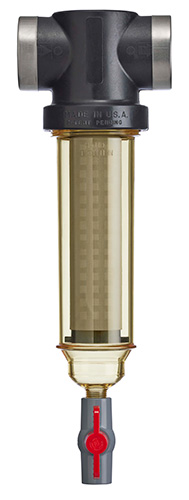

1 1/2" Spin-Down

Specifications

  • Flow Capacity: 18-100 GPM
  • Max Pressure: 150 PSI
  • Max Temp: 200°F(93°C) @ 40 PSI
  • Dimensions:17-7/8"L x 5-1/2"W
  • Port Size: 1.5" FPT

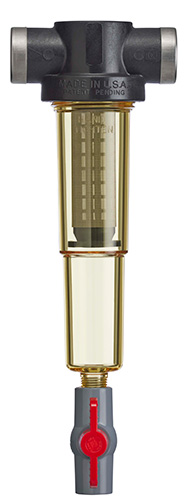

3/4" Sediment Trapper

Specifications

  • Flow Capacity: 1-25 GPM
  • Max Pressure: 150 PSI
  • Max Temp: 200°F(93°C) @ 40 PSI
  • Dimensions:14-3/8"L x 5"W
  • Port Size: 3/4" FPT

1 1/4" Spin-Down

Specifications

  • Flow Capacity: 18-100 GPM
  • Max Pressure: 150 PSI
  • Max Temp: 200°F(93°C) @ 40 PSI
  • Dimensions:17-7/8"L x 5-1/2"W
  • Port Size: 1.5" FPT

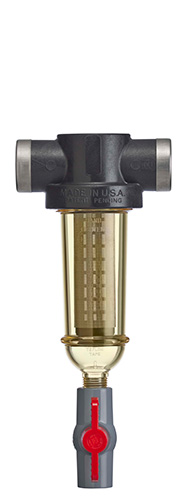

3/4" Spin-Down

Specifications

  • Flow Capacity: 18-100 GPM
  • Max Pressure: 150 PSI
  • Max Temp: 200°F(93°C) @ 40 PSI
  • Dimensions:17-7/8"L x 5-1/2"W
  • Port Size: 1.5" FPT
